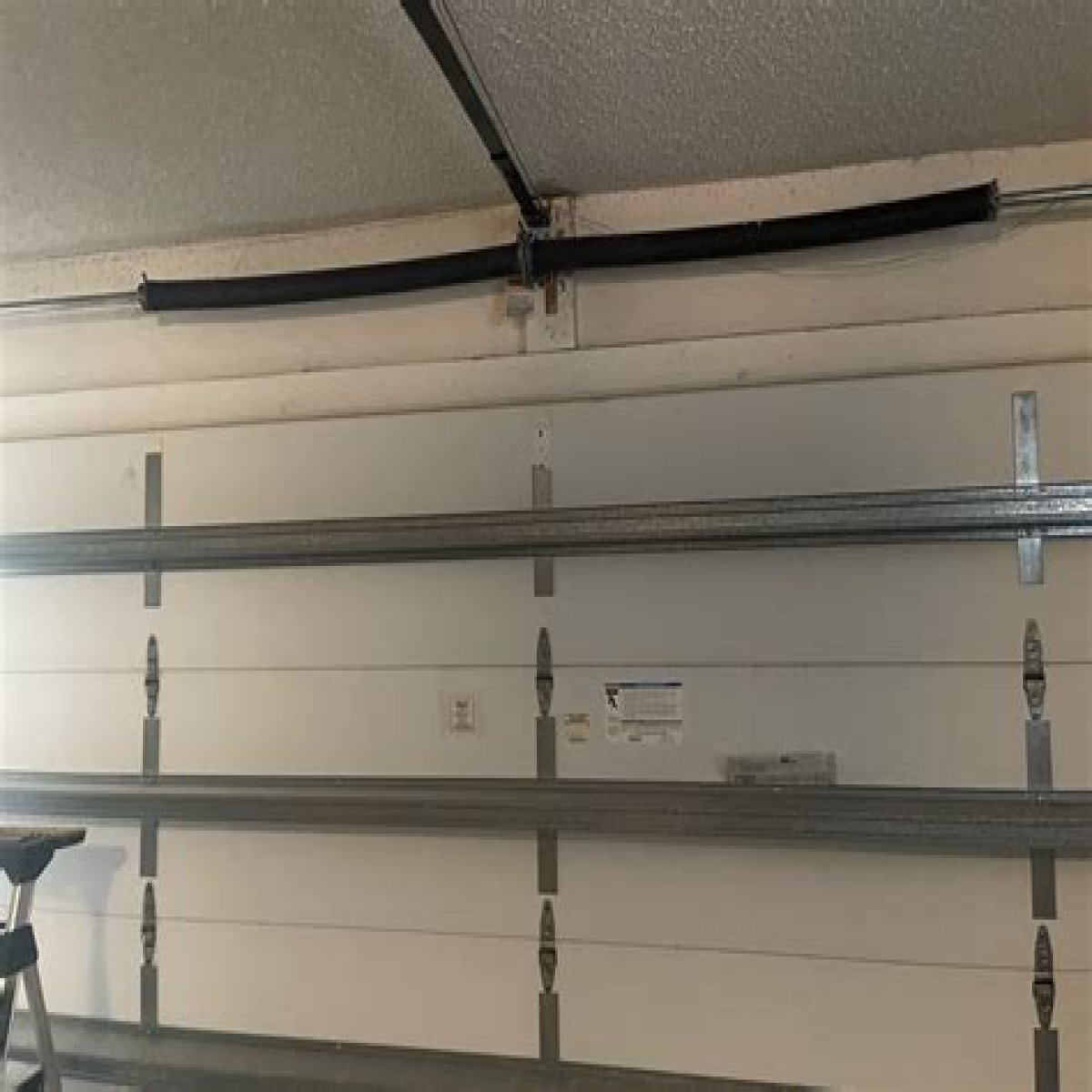

The garage door torsion spring has fixed cone and a winding cone. The stationary cone remains in place and protects the spring to the center bracket (also known as the spring anchor bracket). The winding cone functions are: installing, changing and winding the spring. When a garage door spring is installed, the coil is ended up to produce the necessary torque level.
In all cases the springs must be set up on the correct side of the center bracket. In many cases, the red winding conned spring (RW) set up on the left hand side and the black winding connedspring (LW) set up on the ideal hand side (both need to be positioned where the coils ends facing towards the ceiling).
As soon as the shaft remains in location, we can then alternately pull it out, when from the best end bearing plate and when from the left end bearing plate. That way the springs can easily slide inside along the shaft from the complimentary ends.” With the spring positioned effectively, the fixed cones need to be securely secured to the center bracket.
Exact same as the spring, the drum need to be set up on the correct side and with its set of bolts dealing with inwards. The red drum position is in the left hand side (has “L” on it) and the black drum position is on the right-hand man side (has “R” on it). At the same time pulling the shaft out once again, sliding the drums from the totally free ends, as soon as from the right end bearing plate and as soon as from the left end bearing plate.” The garage door cables are the only connection in between the garage door and the shaft system.
The cable television hooks to the bottom bracket with a loop, passes behind the rollers and hooks with a suggestion to a designated slot on the drum. Prior to continuing any even more we must make sure the following: That the cable televisions are attached correctly; pass in the best path, behind all the rollers, in between the door panels and the jamb brackets.
That the shaft is coming out uniformly from both ends of completion bearing plates. Starting at the left hand side, wrapping the cable can be quickly done by positioning it in the drum’s groove and turning the drum towards the ground. Every step of the procedure we must guarantee that the cable television remains in the best groove.” Once the cable is in the ideal groove, we need to keep the cable tight by turning the drum and holding it towards the ground.
While the cable is tight, use 7/16 in. (11mm) 12 points wrench to tighten up the drum’s set of bolts. Producers and requirements organizations have a rigorous set of torque worths for the drum’s and spring’s set of bolts; nevertheless, research studies have actually revealed that these standards are not followed. Even knowledgeable service technicians frequently over torque or under torque them.” Equipment manuals and product information does not normally include the required torque values for the drum’s and spring’s set of bolts.
For the most part, the manufacturer recommendations are as follows: once the bolt has made contact with the shaft, extra complete transformation is required.” It is crucial to bring both cables to the same amount of stress before any spring is being wound; therefore, we wish to make sure that the left hand drum and cable television are constantly tensioned, before proceeding to the right-hand man drum.
While pushing the locking vice script and keeping the pressure, the 2nd locking vice script is being clamped on the shaft, up versus the header/wall. When pressing the very first locking vice script set, putting moderate amount of pressure is sufficient. We need to keep in mind that the right-hand man drum and cable television are being tensioned by hand just, without any tools being used.” When the second locking vice script set is repaired versus the header/wall, the first locking vice script (the one that we utilized to push the shaft towards the ground) needs to be released and secured back on the shaft down versus the door/wall.
This locking vice script set will hold the garage door down in case that extreme quantity of torque has been applied to the springs or in case that the incorrect springs offered.” Proceeding to the right-hand man drum; making sure that the cable pointer in the drum’s slot and turning the drum down against the ground, all at once wrapping the cable in the ideal groove.
